Lightest1134 mm
1965 mm
SS108GTG-540
G12R TOPCon · 16BB
500–540W
- Efficiency
- up to 24.32%
- Weight
- 27.5 kg
- Size
- 1965 × 1134 mm
- Cells
- 108 half-cut

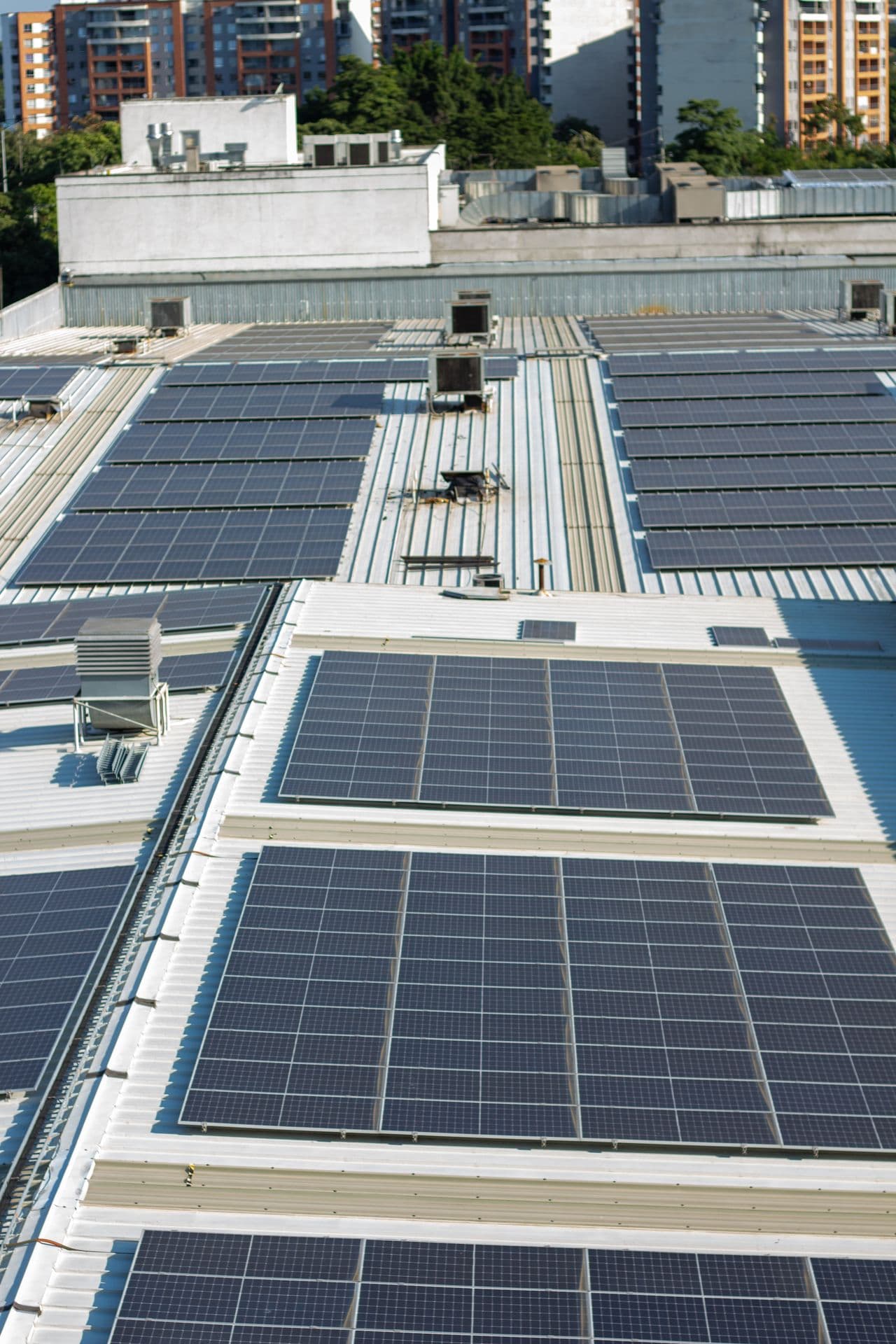

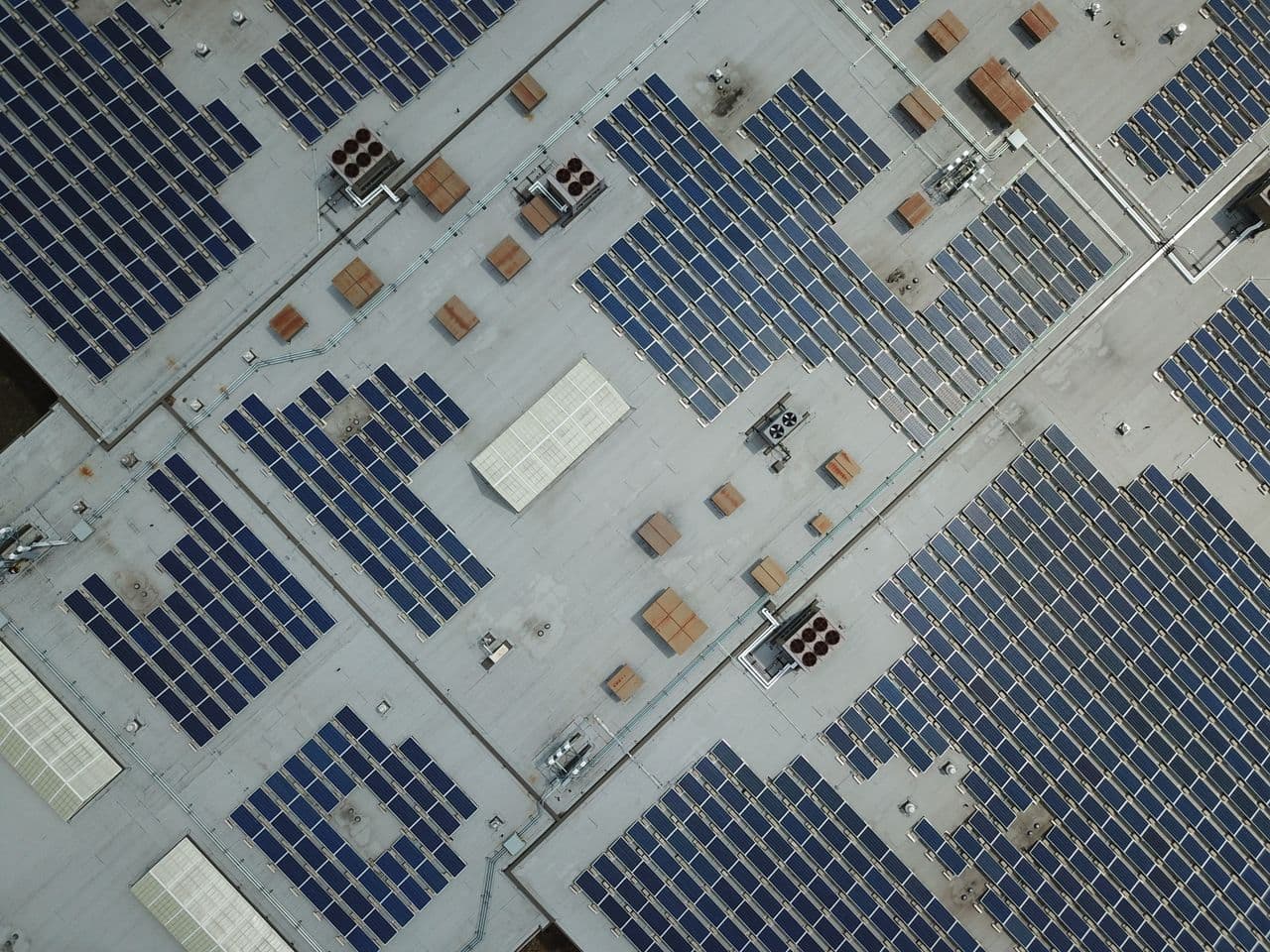

Commercial & industrial rooftop
For factories, warehouses, institutions and large residential buildings: high power per module in a size two people can still carry onto a roof.
Made for
Factory rooftops
Warehouses
Institutions

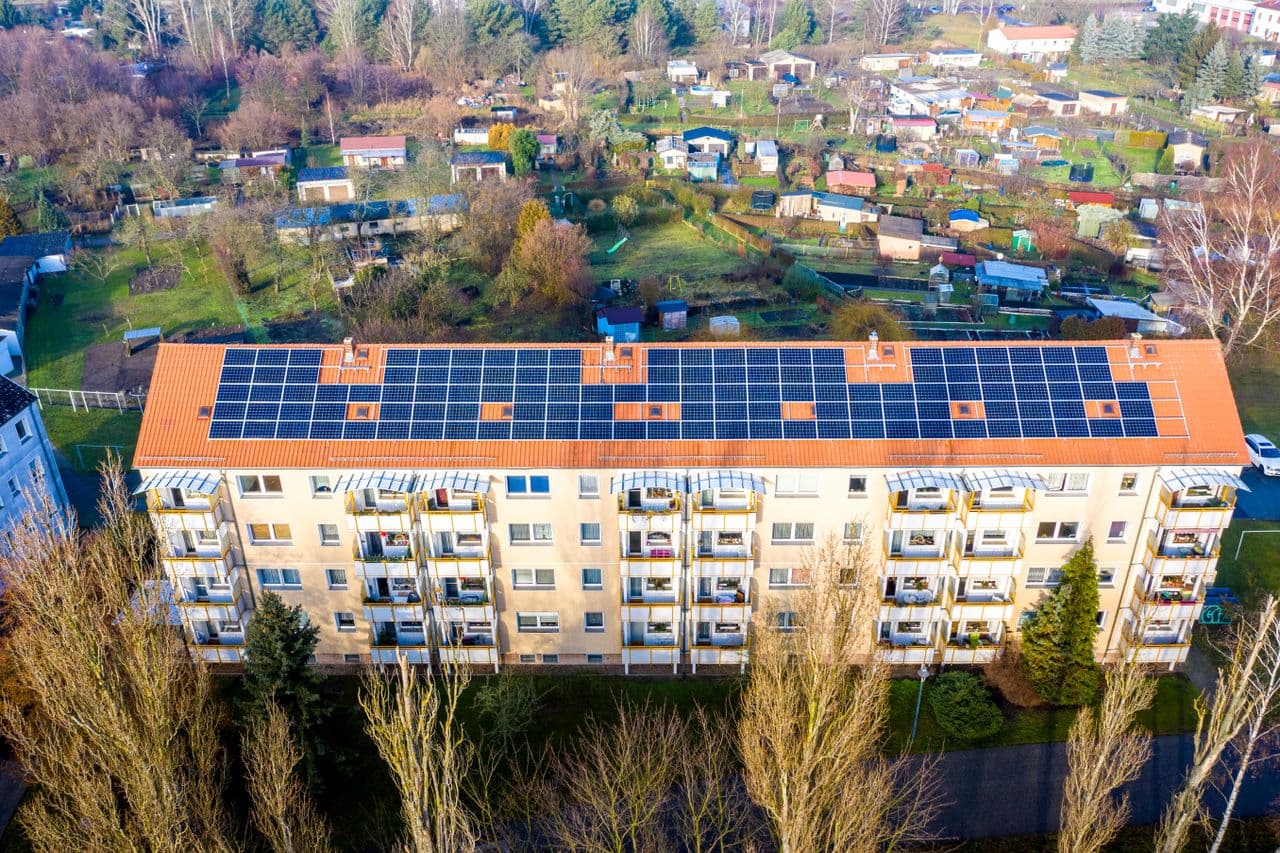

Large residential buildings
4 module families
Pick the panel that fits your roof
Panels are drawn side by side at the same scale, so you can compare sizes at a glance.
- Wide format
1303 mm 1762 mmSS96GTG-550
G12 TOPCon · 18BB
510–550W
- Efficiency
- up to 23.96%
- Weight
- 28.6 kg
- Size
- 1762 × 1303 mm
- Cells
- 96 half-cut
- Most efficient
1134 mm 2170 mmSS120GTG-600
G12R TOPCon · 16BB
550–600W
- Efficiency
- up to 24.39%
- Weight
- 30.5 kg
- Size
- 2170 × 1134 mm
- Cells
- 120 half-cut
- Wide format
1303 mm 1965 mmSS108GTG-615
G12 TOPCon · 18BB
560–615W
- Efficiency
- up to 24.04%
- Weight
- 31.9 kg
- Size
- 1965 × 1303 mm
- Cells
- 108 half-cut
Every panel in the range
Built to last 30 years
Glass on both sides
Bifacial glass–glass build collects light reflected from the roof.
IP68 junction box
Sealed against dust and monsoon rain.
5400 Pa front load
Rated for heavy wind and snow loads.
−40 °C to +85 °C
Built for Indian summers on hot rooftops.
Warranty you can plan around
12-year product warranty · 30-year linear power warranty
99%power after year 112 yrproduct cover87.4%power at year 30
All shared specifications
- Cell technology
- n-type TOPCon bifacial, half-cut
- Construction
- Glass–glass, 2.0 mm AR-coated tempered front / 2.0 mm tempered rear
- Frame
- Anodised aluminium alloy
- Junction box
- IP68, 3 bypass diodes
- Connectors / cable
- MC4-compatible IP68 · 4 mm² PV cable
- Power bifaciality
- 70% ± 10%
- Max. system voltage
- 1500 V DC
- Max. series fuse
- 35 A
- Static load (front / rear)
- 5400 Pa / 2400 Pa
- Operating temperature
- −40 °C to +85 °C
- Power tolerance
- 0 / +5 W
- Class ratings
- Safety Class II · Fire Class C
Other applications
Planning a project? Let's size it together.
Tell us about your site and our team will recommend the right panels and send pricing within one working day.
