Residential & small systems

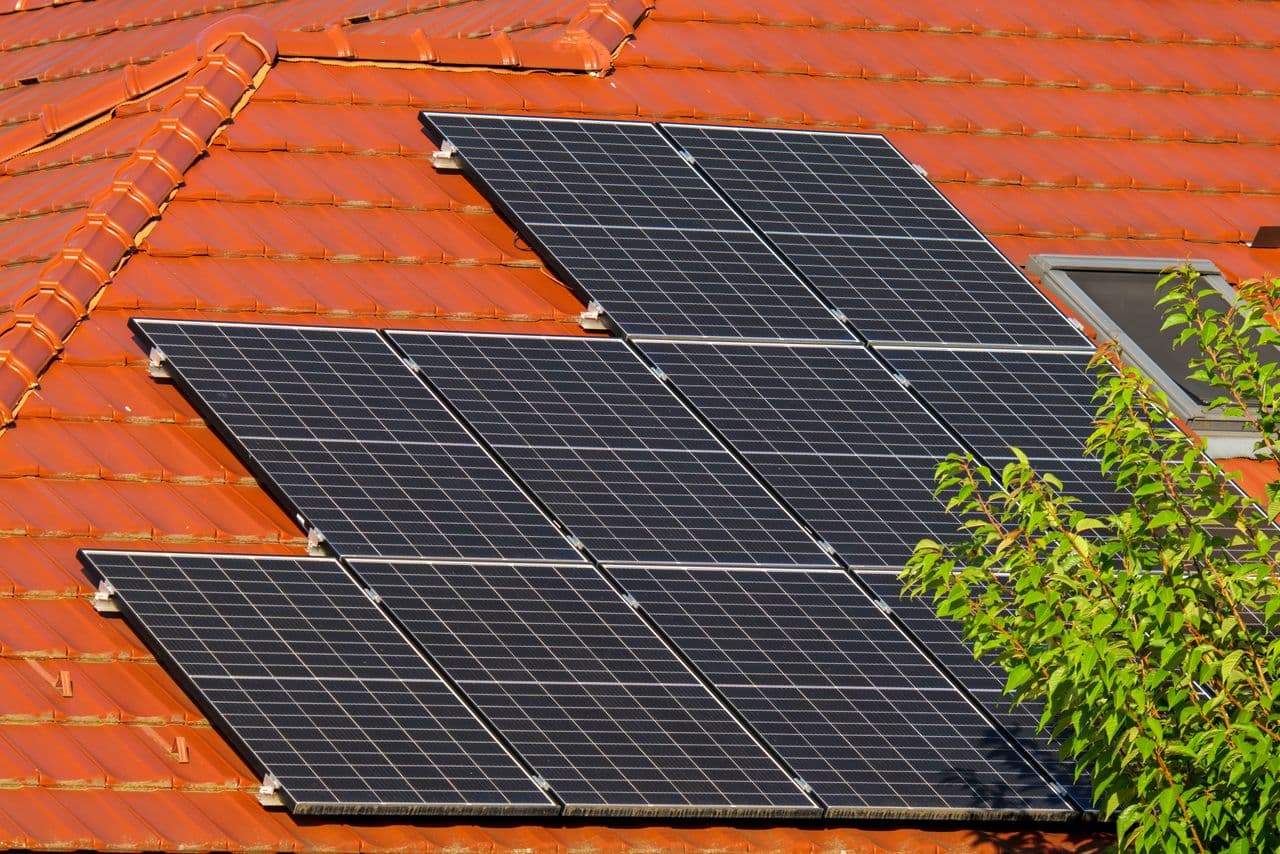

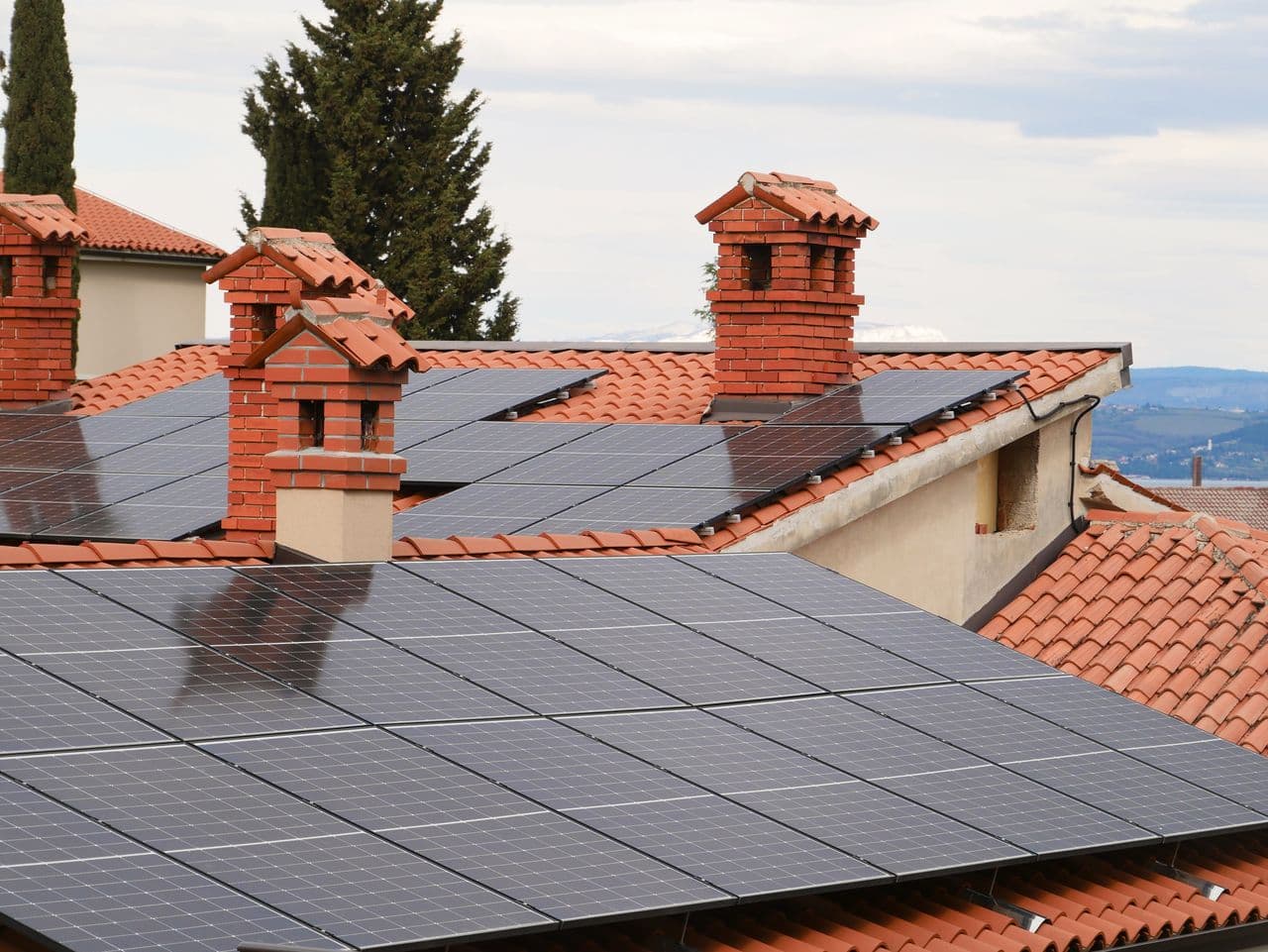

For homes, PM Surya Ghar rooftops, solar pumps and small standalone systems, where module size and weight decide what is practical on the roof.

Made for

3 module families

Panels are drawn side by side at the same scale, so you can compare sizes at a glance.

Every panel in the range

Glass on both sides
Bifacial glass–glass build collects light reflected from the roof.
IP68 junction box
Sealed against dust and monsoon rain.
5400 Pa front load
Rated for heavy wind and snow loads.
−40 °C to +85 °C
Built for Indian summers on hot rooftops.

12-year product warranty · 30-year linear power warranty

99%power after year 112 yrproduct cover87.4%power at year 30

All shared specifications

Cell technology: n-type TOPCon bifacial, half-cut
Construction: Glass–glass, 2.0 mm AR-coated tempered front / 2.0 mm tempered rear
Frame: Anodised aluminium alloy
Junction box: IP68, 3 bypass diodes
Connectors / cable: MC4-compatible IP68 · 4 mm² PV cable
Power bifaciality: 70% ± 10%
Max. system voltage: 1500 V DC
Max. series fuse: 35 A
Static load (front / rear): 5400 Pa / 2400 Pa
Operating temperature: −40 °C to +85 °C
Power tolerance: 0 / +5 W
Class ratings: Safety Class II · Fire Class C

Tell us about your site and our team will recommend the right panels and send pricing within one working day.
